Product Center
     Product Center     Medium voltage MOS

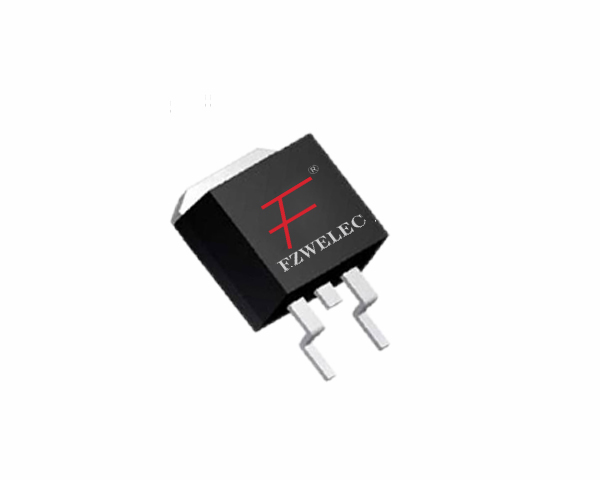

TO263
TO263

Medium voltage MOS

　　 The medium voltage MOSFET is manufactured using FZWELEC micro trench and planar process technology. The advanced technology and cell structure make the product realize the maximum power density, thereby greatly reducing the conduction loss during the current conduction process, and has low conduction resistance, superior switching performance and high avalanche breakdown tolerance. .

　　1, lower gate charge,

　　2, lower reverse transmission capacitance

　　3, faster switching speed

　　4, higher dv/dt capability

TO263
  • Part_Number
  • Package
  • Configuration
  • Type
  • ESD_Diode
  • Vds(V)
  • Vgs(+V)
  • Vth(V)
  • Rds(on)mΩmax2.5V
  • Rds(on)mΩ max4.5V
  • Rds(on)mΩ max10V
  • ID(A)
  • ~ V
  • ~ V
  • ~ V
  • ~ V
  • ~ V
  • ~ V
  • ~ V
Part_Number Package Configuration Type ESD_Diode Vds(V) Vgs(±V) Vth(V) Rds(on)mΩ max2.5V Rds(on)mΩ max4.5V Rds(on)mΩ max10V ID(A) 说明书
FL1101M TO263 Single N No 100 20 2 0 106 100 20
FL1101N TO263 Single N No 100 20 3 0 23 10 100
FL1102N TO263 Single N No 100 20 2 0 22 18 70
FL1103 TO263 Single N No 100 20 1 0 3 2 180
FL1104NA TO263 Single N No 100 20 2 0 34 32 45
FL1105 TO263 Single N No 100 20 2 0 26 23 50
FL1141N TO263 Single N No 100 20 2 0 0 5 110
FL1151N TO263 Single N No 150 20 1 0 14 11 90
FL1154N TO263 Single N No 150 20 4 0 8 7 128
FL1201N TO263 Single N No 150 20 2 0 102 99 20
FL1202M TO263 Single N No 150 20 5 0 0 35 55
FL1203M TO263 Single N No 200 20 2 0 12 10 88
FL1204M TO263 Single N No 200 20 3 0 225 180 20
FL1204N TO263 Single N No 200 20 3 0 370 260 10
FL1206 TO263 Single N No 200 20 3 0 525 420 9
FL1208N TO263 Single N No 200 20 3 0 50 42 50
FL1251K TO263 Single N No 20 20 1 0 8 6 85
FL1252M TO263 Single N No 200 20 3 0 0 48 40
FL1254N TO263 Single N No 250 20 2 0 1320 1100 4
FL1301 TO263 Single N No 250 20 2 0 276 230 16
FL1302 TO263 Single N No 250 20 2 0 56 47 45
FL1302A TO263 Single N No 30 20 2 0 2 2 260
FL1303 TO263 Single N No 30 20 1 0 2 2 180
FL1101M TO263 Single N No 100 20 2 0 106 100 20
FL1101N TO263 Single N No 100 20 3 0 23 10 100
FL1102N TO263 Single N No 100 20 2 0 22 18 70
FL1103 TO263 Single N No 100 20 1 0 3 2 180
FL1104N TO263 Single N No 100 20 2 0 34 32 45
FL1104NA TO263 Single N No 100 20 2 0 26 23 50
FL1105 TO263 Single N No 100 20 2 0 0 5 110
FL1141N TO263 Single N No 150 20 1 0 14 11 90
FL1151N TO263 Single N No 150 20 4 0 8 7 128
FL1151M TO263 Single N No 150 20 2 0 102 99 20
FL1154N TO263 Single N No 150 20 5 0 0 35 55
FL1201N TO263 Single N No 200 20 2 0 12 10 88
FL1202M TO263 Single N No 200 20 3 0 225 180 20
FL1203M TO263 Single N No 200 20 3 0 370 260 10
FL1204M TO263 Single N No 200 20 3 0 525 420 9
FL1204N TO263 Single N No 200 20 3 0 50 42 50
FL1206 TO263 Single N No 20 20 1 0 8 6 85
FL1208N TO263 Single N No 200 20 3 0 0 48 40
FL1251K TO263 Single N No 250 20 2 0 1320 1100 4
FL1252M TO263 Single N No 250 20 2 0 276 230 16
FL1254N TO263 Single N No 250 20 2 0 56 47 45
FL1301 TO263 Single N No 30 20 2 0 2 2 260
FL1302 TO263 Single N No 30 20 1 0 2 2 180
FL1302A TO263 Single N No 30 20 1 0 3 2 180
FL1303 TO263 Single N No 30 20 2 0 4 3 170
FL1303A TO263 Single N No 30 20 2 0 3 2 180
FL1307 TO263 Single N No 30 20 1 10 8 0 70
FL1310 TO263 Single N No 30 20 2 0 19 12 70
FL1401 TO263 Single N No 40 20 2 0 2 1 250
FL1402 TO263 Single N No 40 20 1 0 3 2 180
FL1405 TO263 Single N No 40 20 2 0 6 5 100
FL1602 TO263 Single N No 60 20 2 0 2 2 270
FL1603 TO263 Single N No 60 20 3 0 13 3 210
FL1606 TO263 Single N No 60 20 3 0 0 4 150
FL1615 TO263 Single N No 60 20 2 0 12 11 75
FL1615A TO263 Single N No 60 20 2 0 9 7 120
FL1632 TO263 Single N No 60 20 2 0 27 23 40
FL1607V1.6 TO263 Single N No 60 20 2 0 7 5 140
FL1607V3 TO263 Single N No 60 20 3 0 33 5 140
FL1803 TO263 Single N No 80 20 4 0 0 4 210
FL1806 TO263 Single N No 80 20 4 0 10 6 120
FL2102M TO263 Single P No -100 20 -2 0 240 200 -10
FL2102MA TO263 Single P No -100 20 -2 0 178 164 -14
FL2106N TO263 Single P No -100 20 -2 0 60 50 -40
FL2152M TO263 Single P No 150 20 -2 0 238 190 -13
FL2152N TO263 Single P No -150 20 -2 0 228 190 -13
FL2205M TO263 Single P No -200 20 -2 0 600 500 -7
FL2305 TO263 Single P No -30 20 -1 0 6 5 -100
FL2309 TO263 Single P No -30 20 -2 0 10 8 -75
FL2406 TO263 Single P No -40 20 -2 0 8 7 -72
FL2412 TO263 Single P No -40 20 -1 0 15 13 -60
FL2606 TO263 Single P No -60 20 -1 0 8 7 -120
FL2609 TO263 Single P No -60 20 -2 0 10 8 -110
FL2610N TO263 Single P No -60 20 -1 0 120 100 -20
FL2625 TO263 Single P No -60 20 -2 0 25 21 -80
FL2658 TO263 Single P No -60 20 -1 0 70 58 -30
FL7401 TO263-7 Dual N No 40 20 2 0 1 1 240
FL7402 TO263-7 Dual N No 40 20 2 0 2 2 180
FL7603 TO263-7 Dual N No 60 20 2 0 2 2 140
FL7401 TO263-7 Dual N No 40 20 2 0 1 1 240
FL7402 TO263-7 Dual N No 40 20 2 0 2 2 180
FL7603 TO263-7 Dual N No 60 20 2 0 2 2 140
